- Product Description
Connect 8 infrared heaters to the Oceanic control box.
Oceanic digital controls have a countdown timer for settings up to 60 minutes, a thermostatic temperature control to set upto 60ºC and a high temperature safety cut off at 80ºC to prevent overheating. Two outputs for the optional extra stereo speakers with Bluetooth or audio connection output to connect to compatible MP3 or smart phone devices. You will also be able to control the sauna lighting via the digital controls. The digital controls have a 12V DC output for the optional extra low voltage lights or the colour changing chromotherapy lights.
New Generation Infrared Emitters
All of our heaters are equipped with new generation Infrared heat lamps with quartz elements and carbon fibre filaments. These have an increased spectral distribution of light that includes part of the visible spectrum, including infrared radiations A, B and C in percentages that are close to the natural sun light. These emitters are designed for instantaneous heating - as soon as they are switched on the elements begin emitting infra-red heat giving instant direct warmth – so now you can enjoy a more natural infrared sauna bath.
Two types of infrared heater are available, vertical and horizontally mounted units. Both units incorporate a single 300W infrared element, reflector and wiring socket housed in a timber surround with a perforated protective cover. Each unit is individually plugged into the control box via a 3m 240V cable supplied. If a longer length of cable is required please contact the sales team and specify the correct length. The vertical units are to be installed behind or in front of the seating position at around back / chest height around 850mm from floor level to centre of the unit. Horizontal Units are to be positioned beneath bench at low level ~ 250mm from floor level. The quantity of heaters required will depend upon the size of the sauna and how many people it is intended for. See Sauna Layout for further information.

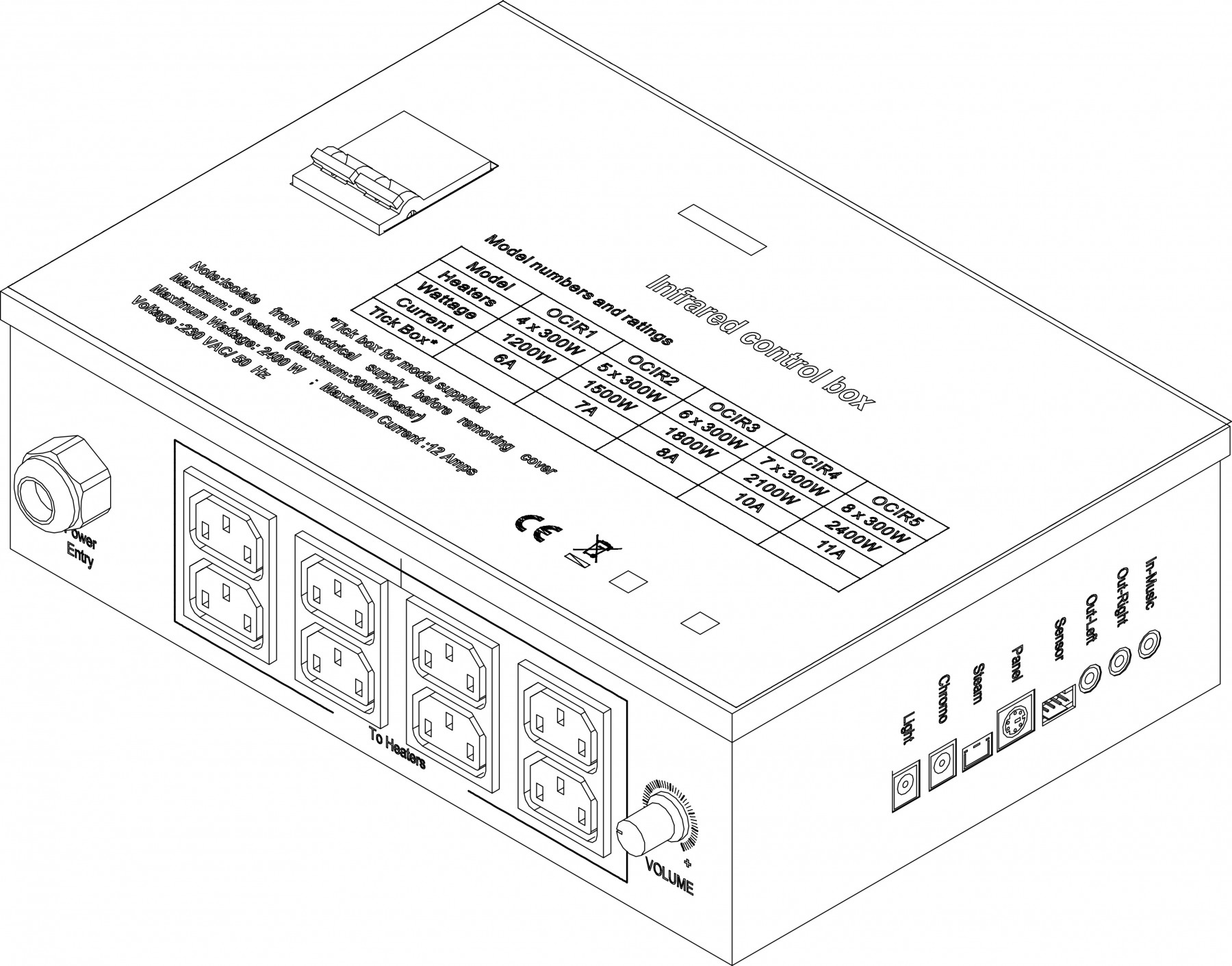

The control box contains the relays for switching the IR Heaters on/off along with the main circuit board for controlling inputs from the keypad, sensors etc. This box is typically mounted on top of the sauna but can also be located on the side wall (externally). The location will affect the required cable lengths to the heater units. The domestic unit can be plugged into a 13amp socket as the total power is limited to 8 units / 2400W. The commercial unit must be wired via an isolator switch and can power upto 12 heater units / 3600W
The oval shaped keypad is supplied with a 5m 6pin low voltage cable to connect directly to the control box. A 10m version of this cable is available if required and can be purchased online through the Oceanic website. The keypad should be mounted outside the sauna, typically at height of 1500mm from floor level for ease of use. The keypad is used to control the length of time the heaters are on for along with the desired air temperature inside the room. The keypad can also be used to control low voltage lighting circuit and speakers if installed (available as optional extras).
The temperature sensor is supplied with a 3m 4pin cable and should be located inside the sauna at a height of around 1300mm from floor level and not directly in front of an IR heater.

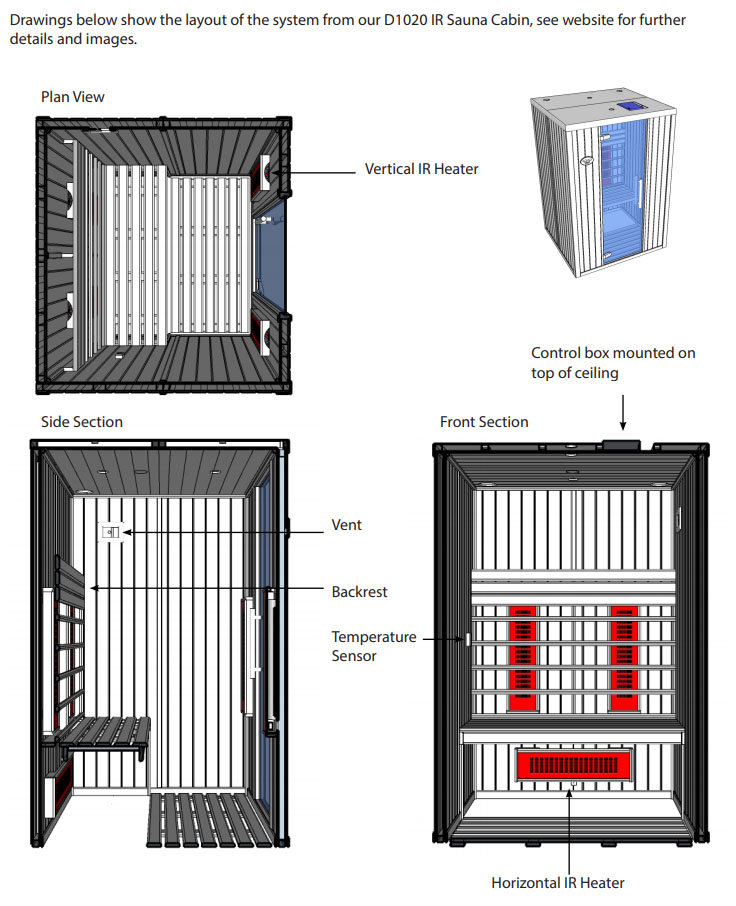

Infrared Sauna Design and Layout

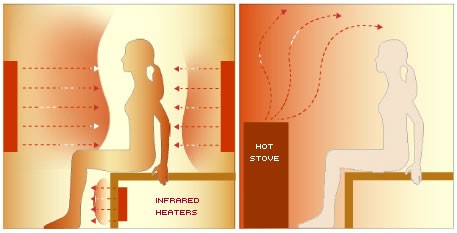

Before purchasing the IR units and controls we recommend carefully designing the layout of the sauna. Unlike traditional saunas Infrared saunas are typically designed for users to sit upright surrounded by the Infrared emitters. Normally there should be one vertical unit behind each user with possibly another somewhere infront and horizontal at low level behind.
Vertical IR units are for behind and infront of the body above bench height. Horizontal units are for low level beneath the benches.
Oceanic Infrared sauna heaters must not be used in conjunction with a traditional rock sauna heater.
Dimensions (LxWxH) 203mm x 718mm x 50mm Electrical Supply 230V 1N~
- Optional Extras

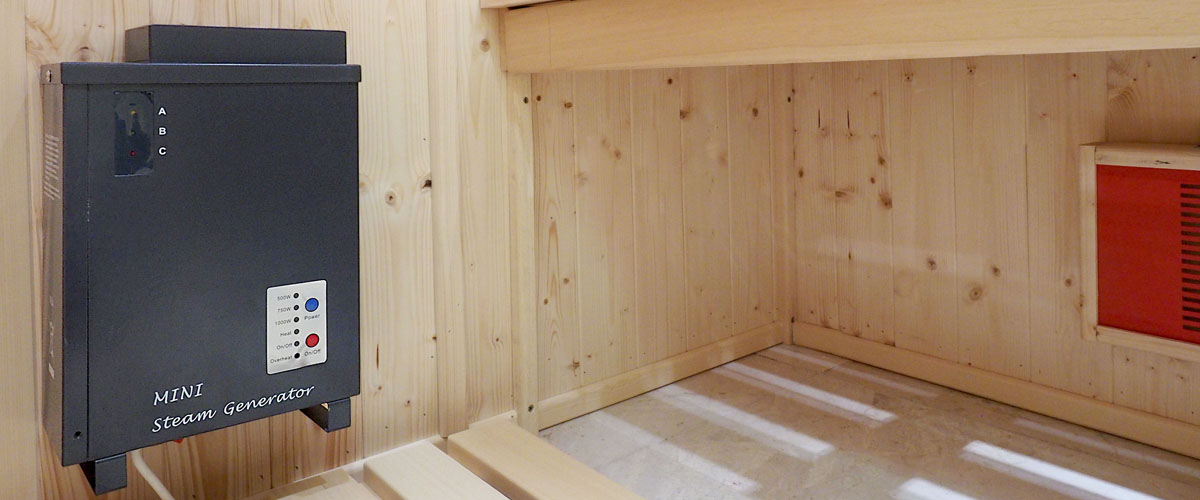

Mini Steam Generator
Combining an infrared sauna with bursts of steam for the increased pleasure and relaxation. Infrared saunas are normally dry saunas, but many users enjoy the sensuality of steam and increased humidity of the more traditional sauna.
The Oceanic mini steamer which has been designed for use with our hermetically sealed infra red emitters, it is wall mounted and has 3 steam setting. Equipped with boil dry protection, indicator lights to show the water levels and power settings. A splash guard also provides a space to place crushed herbs or drops of essential oils so as to infuse the steam with their fragrance and elevate the experience to another level.
NO PLUMBING - NO DRAINAGE
The Mini Steam Generator system has been designed with simplicity in mind no plumbing or drainage is required – the generator is topped up with water from a jug or a kettle. During a 10 to 15 minute session only a cup full is boiled away – and thanks to the special coating of Saunarium Coat, at the end of the steaming session any small amount of condensate left inside the cabin can easily be sponged away, then the door and vents left open for it to dry.
Listening to your favourite relaxing music whilst enjoying your infrared sauna couldn't be easier with our speakers. Each speaker is rated to 60W and the control box can also accept an auxillary input.
A set of two 60W speakers.
Infrared Sauna White Lighting
The infrared control box can control the lighting in your sauna with its 12v DC output (max 40W per circuit - two cicuits).
Infrared Chromotheraphy Lighting
12 colour options or leave to fade through the spectrum. Supplied with chrome finished fire rated downlight.
80 degree Water resistant Speakers
Listening to your favourite relaxing music whilst enjoying your steam room couldn't be easier with our bluetooth waterproof speakers. Each speaker is rated to 60W and the bluetooth controller can also accept an auxillary input. Compatible with all bluetooth enabled devices.
Please select these water resistant speakers if you are purchasing a mini steam generator.
- Delivery & Warranty
Delivery of your order
To know the availability of this product and its delivery times, contact us.
All Oceanic products are guaranteed for 3 years in the event of a lack of conformity.
The warranty does not apply to "consumable" parts, such as elements, for example.
See Terms and conditions for more details.
If necessary, Oceanic Saunas agrees to keep a stock of all possible spare parts for this device.
