- PRODUCT DESCRIPTION
-
Get ready to sit back in the calming oasis of the Oceanic Infrared Sauna, which comes as a free-standing timber cabin to use inside your home. This ready-to-go style is handmade to order in our UK factory, it will be delivered flat-packed to your door, ready to be installed and enjoyed.
WHAT IS AN INFRARED SAUNA?
Our infrared sauna is powered by infrared radiation, which heats your body without needing to warm the air around you. The infrared output we use contains a mixture of short, medium and long-wave infrared known as ‘full spectrum’ and is similar to what you feel from the sun on a bright summer’s day.
The air inside an infrared sauna will still feel warm but hits a maximum temperature of 60°C, whereas a Finnish sauna can reach 110°C. A key bonus to infrared saunas is that they require much less power.
The sauna comes with a timber floor mat, benches, backrest, electric emitters, a digital control system and lighting.
HOW DO YOU USE IT?
As an infrared sauna doesn’t warm up the air, there is less heat-up time, so you can turn it on and start using it straight away. There’s no benefit to lying down or having multiple seating levels, so people usually sit upright with an emitter directly behind them or possibly to the side or front. This makes them really well suited to smaller spaces.
THE HEALTH BENEFITS
Research shows that there are some great health benefits associated with using saunas. Raising the body temperature and heat exposure has been shown to reduce blood pressure, cardiac illnesses and stress. As well as that, there’s also evidence that it benefits the respiratory system, muscle and bone mass, chronic illnesses and can help you live longer.
If you are intending to use a sauna for a health condition, we recommend you consult your GP first. Please also be mindful that there are some risks associated with using a sauna, so you should make sure to stay hydrated and avoid drinking alcohol.
SETTING UP YOUR SAUNA
All of our saunas come flat-packed with assembly instructions. Unless you’re a dab hand at DIY, we suggest you choose a local fitter or carpenter to install it.
The wall and ceiling panels are pre-constructed, but the benches, backrest and floor mats will need to be assembled before they go in. For a two-person sauna, it will typically take around one day to install; anything larger will take longer.
All of our domestic infrared saunas can be plugged into a 13amp socket. The electrical connection to the heater must be carried out by a qualified electrician.
THE INSTALLATION CHECKLIST
Before you think about purchasing one of our saunas, you need to check that you can provide the following things:
- A level, washable floor, preferably stone, ceramic or concrete
- A 25mm air gap all around the cabin to allow air to circulate
- A suitable 13 amp power supply (domestic saunas only)
- A minimum ceiling height of 2,200mm to include space for the control system. If you have a ceiling height between 2,020 and 2,200mm, we can supply a special kit so the control system can be installed at a lower height, i.e. on the outside wall of the sauna cabin. Customers with less than 2020mm would need to look at bespoke sauna kits.
- Space for the door of the cabin to open outward, from either a left or right hinge. In restricted areas it’s possible to assemble the sauna cabin from the inside.
TIMBER CLADDING
There are two types of timber that can be used to line the inside and the outside areas on show. We fix the timber to the panel frame so that you can’t see the nails, giving it a smooth, clean finish.
Scandinavian spruce
Spruce is an ideal material for saunas because it has low heat absorption and a low resin content. In the northern areas of Scandinavia where it’s cooler, the trees are pruned and thinned and they grow slowly to provide strong, straight timbers. The timber is kiln dried in the country of origin, then checked for quality before being assembled into a sauna cabin. We only purchase top-grade material that is free from dead knots, splits and shakes.
Canadian hemlock
Western Canadian hemlock is another excellent timber for saunas. It doesn’t warp even when exposed to extreme conditions, it’s knot and resin free, very hard and strong and has an attractive straight grain. Hemlock ranges in colour from warm reds to browns, which combine to create a beautiful appearance. This timber is typically around twice the cost of Scandinavian spruce so it will affect the final price of your sauna. The frame of any glass or door panels will also be made from Hemlock if selected.
BENCH KIT
Our bench kits come with benches, backrests and floor mats. Benches can be open or filled in, but please note that we use more timber for the filled-in option so it’s more expensive.
BENCH TIMBER
You can choose from either spruce or knot-free abachi timber for the benches, backrests and floor mats. Abachi timber is less dense and cooler to the touch, so you don’t need a towel when you sit on it, but it is typically around twice the price of spruce.
GLASS PANEL LAYOUT
Glass panels can be added to the sauna to let in more natural light, help you see in and make a small area feel more spacious. We can add in glass panels in three different ways:
- Layout A - Timber on all sides with a glass door
- Layout B - Front wall in glass with the rest in timber
- Layout C - Front and side wall in glass with the remaining rear and side wall in timber
GLASS COLOUR
You can choose two different types of glass, both cost the same. There is clear glass and a darker bronze-tinted glass, which helps to create a more private and atmospheric environment.
INFRARED HEATER
The Oceanic Infrared Sauna is supplied with full-spectrum infrared emitters that are wall mounted in timber covers, either vertically behind backrests or horizontally beneath bench level.
CONTROLS
We supply a control system that plugs directly into a 13amp socket (except for commercial cabins, which must be hard wired). The control box typically sits on top of the cabin. If your space is below 2.2m, please request an extension kit for longer cables. The control system includes a keypad which typically fits to the front of a timber panel or can be located within 10m of the control box.
The Oval keypad allows you to digitally program the start time, working time and target temperature for the sauna. You can also add up to two lighting circuits. The keypad also displays diagnostic information, such as if the sauna overheats.
SAUNARIUM OPTION (MINI STEAM GENERATOR)
If you want to increase the humidity, we have a 1kW mini steam generator that can be fitted inside most of our infrared saunas as an optional extra. You can use the steam unit alongside the infrared emitters to create a saunarium.
LIGHTING
To brighten up your sauna, you can opt for a variety of lighting options, which include:
- Low-voltage downlights, which are provided as standard. These can either be controlled via an external control system or wired into a nearby wall switch
- Optional linear LED accent lighting kit available in either warm white or RGB colour change variant. Required to backlight backrests and bench infills
- Optional wall lamp and shade
TIMBER PROTECTION
Saunas are a safe, relaxing space, which is why our saunas are typically made from untreated timber so as not to release any chemicals in the air. If you want to change the colour of the timber on the inside or outside, you can use our specially manufactured sauna wax which won’t produce any toxins. We also have a bench protector to make it easier to clean. Saunas with a steam unit included will be supplied with a special coating for the timber to prevent water absoption.
- SPECIFICATION
-
Dimensions (LxWxH) 1675 x 1368 x 2020mm Flat Packed Yes Materials the Sauna can be erected on Vinyl, Ceramic, Concrete Air Gap Requirements 25mm Plugs into 13A socket Yes - LAYOUT
-
Glass panels can be added to the sauna to let in more natural light, help you see in and make a small area feel more spacious. We can add in glass panels in three different ways:
- Layout A - Timber on all sides with a glass door
- Layout B - Front wall in glass with the rest in timber
- Layout C - Front and side wall in glass with the remaining rear and side wall in timber

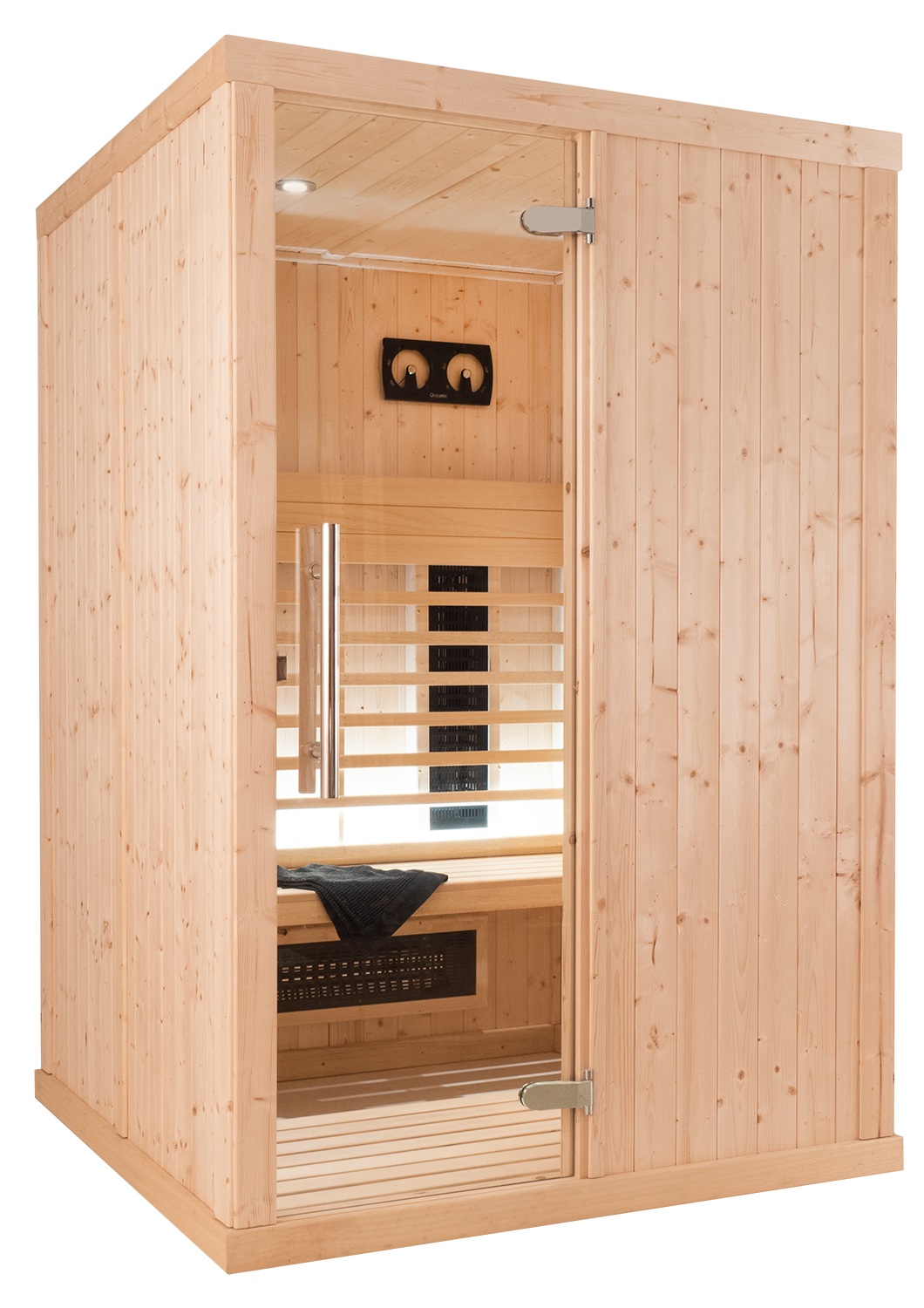

2020 Infrared Sauna - LAYOUT A - Spruce cladding

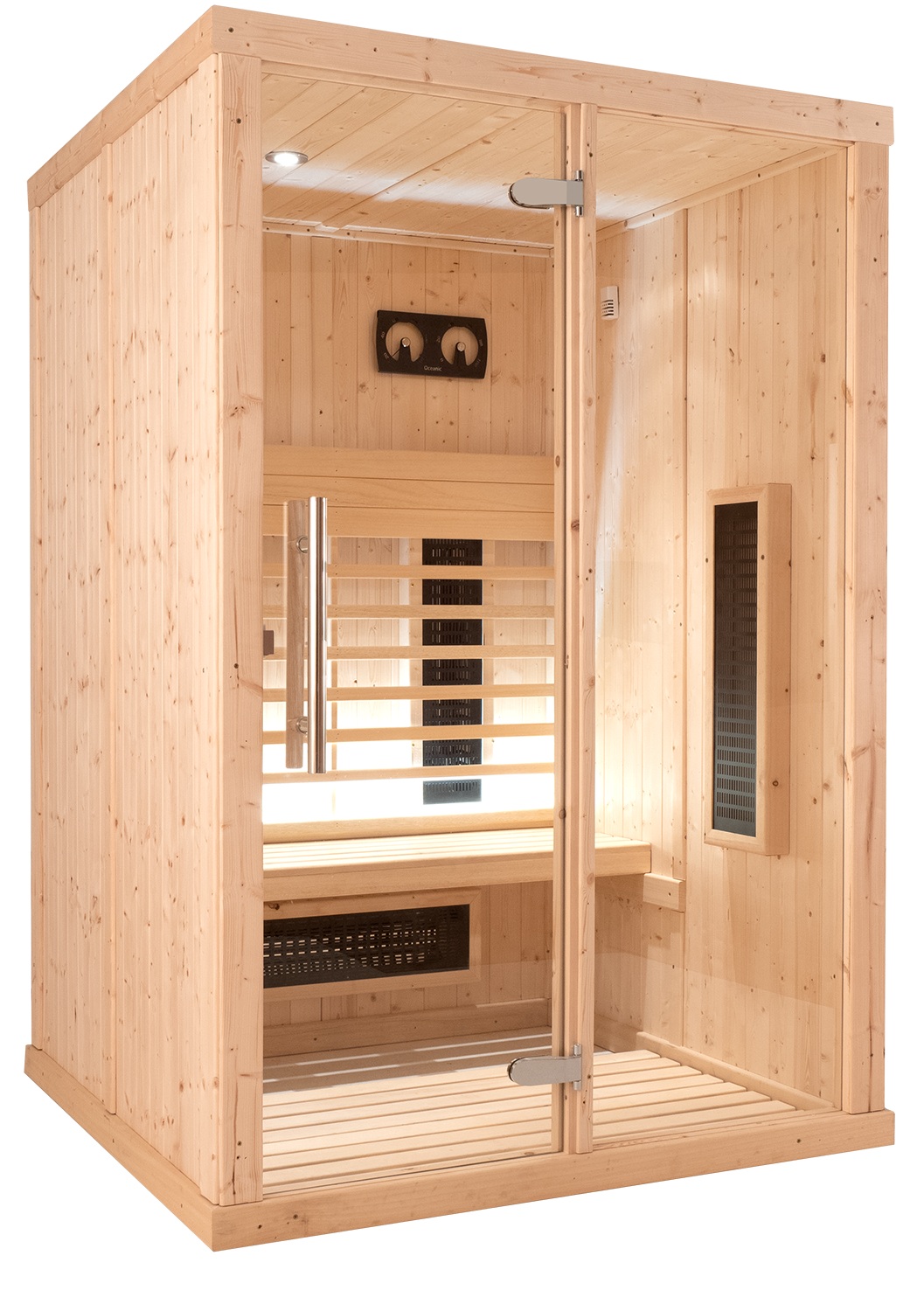

2020 Infrared Sauna - LAYOUT B - Spruce cladding

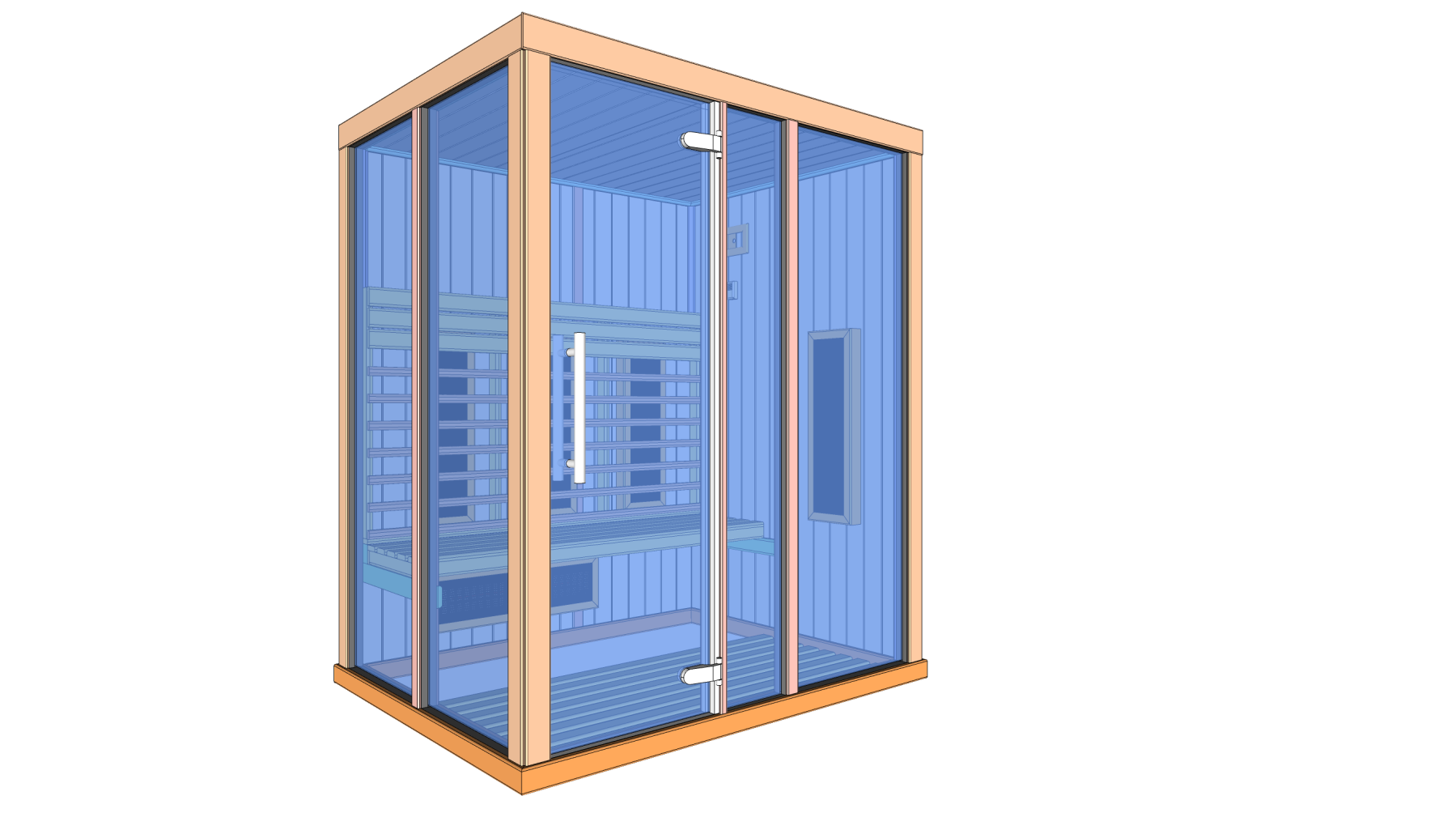

2020 Infrared auna - LAYOUT C - Spruce cladding
- CLADDING
-
Timber cladding
There are two types of timber that can be used to line the inside and the outside areas on show. We fix the timber to the panel frame so that you can’t see the nails, giving it a smooth, clean finish.
Scandinavian spruce
Spruce is an ideal material for saunas because it has low heat absorption and a low resin content. In the northern areas of Scandinavia where it’s cooler, the trees are pruned and thinned and they grow slowly to provide strong, straight timbers. The timber is kiln dried in the country of origin, then checked for quality before being assembled into a sauna cabin. We only purchase top-grade material that is free from dead knots, splits and shakes.
Canadian hemlock
Western Canadian hemlock is another excellent timber for saunas. It doesn’t warp even when exposed to extreme conditions, it’s knot and resin free, very hard and strong and has an attractive straight grain. Hemlock ranges in colour from warm reds to browns, which combine to create a beautiful appearance. This timber is typically around twice the cost of Scandinavian spruce so it will affect the final price of your sauna. The frame of any glass or door panels will also be made from Hemlock if selected.
Note: To keep the cost as low was we can the external face of panels on the rear of and on one side wall will be clad in spruce as it is assumed these will not be visible. If for any reason you do want hemlock cladding on the outside of both side walls/rear walls please call for a price.
- GLASS COLOUR
-
Glass Colour
You can choose two different types of glass, both cost the same. There is clear glass, which allows in the most light and a darker bronze-tinted glass, which helps to create a more private and atmospheric environment.
Clear Glass

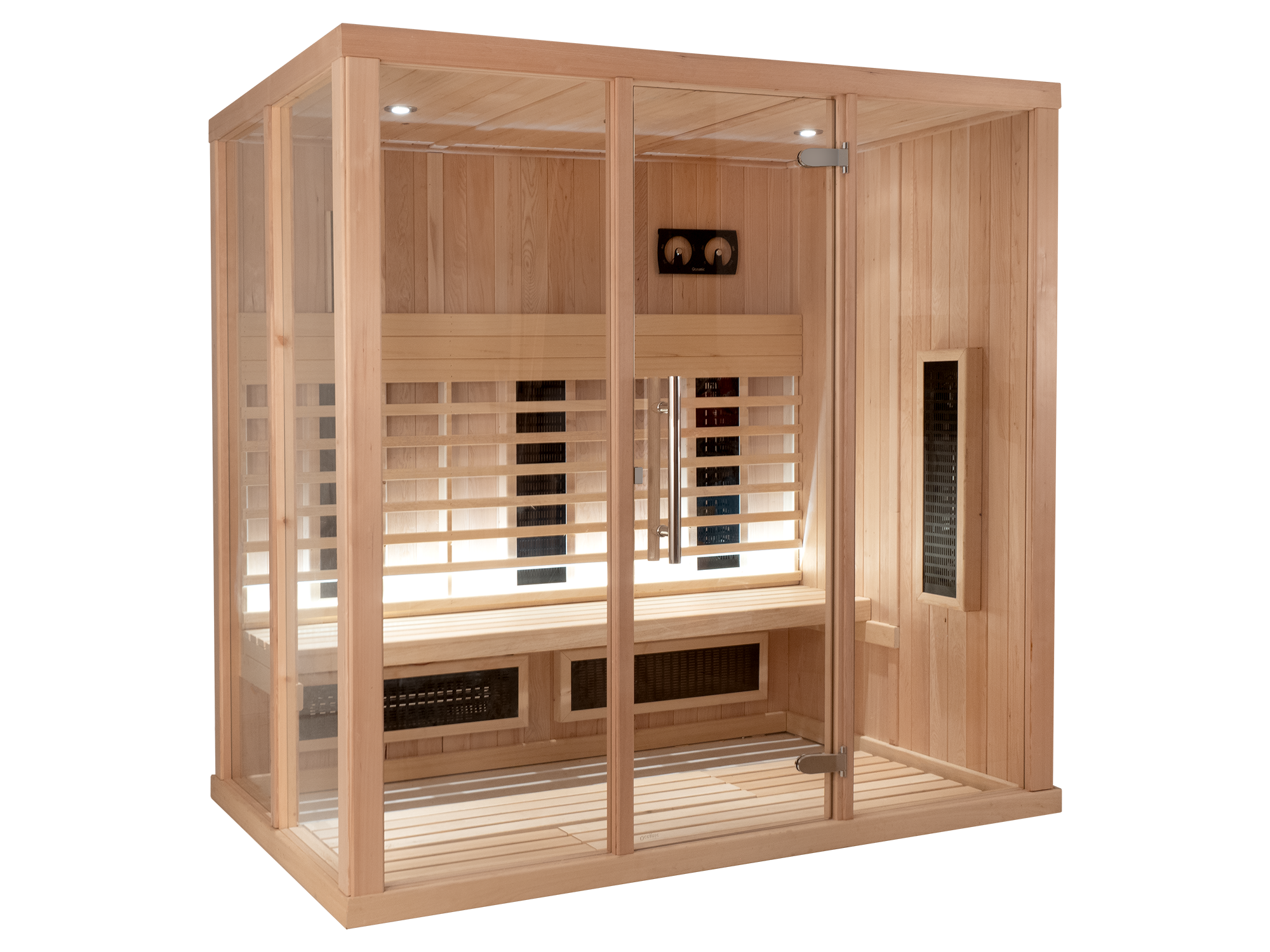

Example infrared sauna model 2030 - Layout C - Hemlock Cladding - Clear Glass
Bronze Glass
Example infrared sauna model 2030 - Layout C - Hemlock Cladding - Bronze Glass
- BENCH KIT
-
Bench Timber
You can choose from either grade A kiln dreid spruce or knot-free abachi timber for the benches, backrests and floor mats. Abachi timber is less dense and cooler to the touch so you don’t need a towel when you sit on it but it is typically around twice the price of spruce.
SPRUCE
ABACHI
- SAUNARIUM OPTION
-

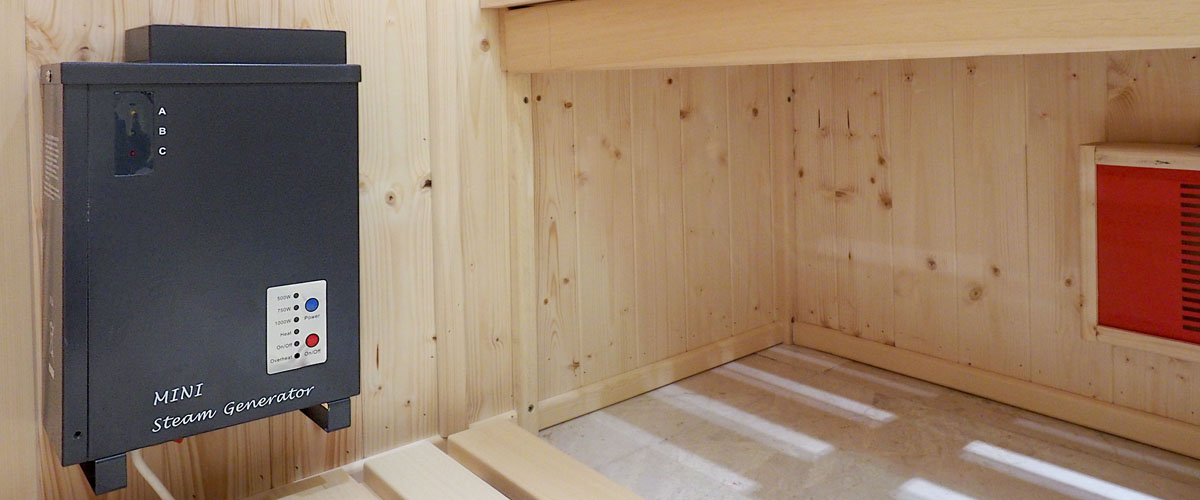

INFRARED SAUNARIUM: NO PLUMBING - NO DRAINAGE
(Model 2020 and larger only)
Combination sauna and steam option; the mini steam generator is designed to increase the humidity in the sauna cabin. Unique new range combines an infra-red sauna with a steam bath for the increased pleasure and relaxation.
Infrared saunas are normally dry saunas, but many users enjoy the sensuality of steam and increased humidity of the more traditional sauna. Now thanks to the introduction of a small steam generator into the cabin our range of Saunariums provide this facility.
The Oceanic mini steamer which has been designed for use with our hermetically sealed infra red emitters, it is wall mounted has 3 heat settings and is equipped with boil dry protection, indicator lights to show the water levels and power settings. A splash guard also provides a space to place crushed herbs or drops of essential oils so as to infuse the steam with their fragrance and elevate the experience to another level.Normally users will find their own level of comfort for temperature and humidity; we suggest all users start with a reduced cabin temperature when using the mini steamer.
NO PLUMBING - NO DRAINAGE
The Infrared Saunarium system has been designed with simplicity in mind no plumbing or drainage is required – the generator is topped up with water from a jug or a kettle. Just a small amount of water produces a considerable amount of steam – during a 10 to 15 minute session only a cup full is boiled away – and thanks to the special saunarium barrier coating and extra ventilation at the end of the steaming session any small amount of condensate left inside the cabin can easily be sponged away, then the door and vents left open for it to dry.
All panels should coated on interior faces with Saunarium coat water barrier treatment. The saunarium coat will be provided.
Spruce Model shown, for individual specifications please see descriptions.
- DELIVERY & WARRANTY
-
DELIVERY OF YOUR ORDER
We manufacture the cabins (saunas and steam baths) at the request of the client, so we do not have stock available immediately.
For orders of big size, when asking for a quote, recipient will have to inform our team about any issues that can occur during delivery (i.e. road forbidding trucks above 3.5t) - this can be done by email to one of our agents. In case correct information is not provided, Oceanic Saunas will have the right to charge the customer for the extra cost occurred by the change from a regular truck to a specific one to ensure access to restricted areas for the delivery; this payment can be taken up to 30 minutes prior to the delivery. It is essential that Oceanic Saunas is informed in advance so that we can gain the correlating details to ensure deliveries are completed in the most convenient way possible.
For delivery to the islands, it is required to add a protective layer of wood to the pallet to prevent damage during transport, with an additional mandatory cost of €50 or €75 depending on the item.
Deliveries are made at your door, that is, at the main door or portal of your home or property, at street level – the pallets or packages will be delivered in front of the main door of your house or building. They will not be uploaded or delivered within your home.
Delivery will be made with a flatbed truck as long as there is sufficient access at destination, delivery at street level and full readiness to receive the merchandise. Sufficient access: the truck must be able to access the delivery point without difficulty, it must have enough space to manoeuvre or be able to leave without any problem. The client has to notify Oceanic Saunas of any access problem that might exist. In the event that the delivery conditions are not adequate, Oceanic Saunas reserves the right to cancel the order and return the amount of the merchandise, subtracting the cost of transport to and from the collection.
We recommend that two people are available to unload the pallet: unloading usually takes about 20 minutes. It is important to wear gloves and protective glasses for handling, especially when handling glass parts.
Sauna or steam room orders cannot be changed, cancelled or returned once the pallet has been collected from our warehouse.
By placing the order the customer acknowledge and accept thos commitments.
If you want to place an order for a sauna or steam room, contact our team on [email protected] with your full details and the specifications of the products desired so an accurate quote can be made in regards to it.
WARRANTY
All Oceanic products are guaranteed for 3 years in the event of a lack of conformity.
The warranty does not apply to "consumable" parts, such as elements, for example.
This range of product will not be exchanged or refunded once it has left our warehouse.
Please, read our Terms and conditions for more details about delivery and guarantee.
Timber warranty
What does this timber warranty cover?
The warranty covers any defects to timber materials used within the sauna under normal use. This includes the internal cladding, external cladding, benches, bench supports, backrests and floor mats.
What will Oceanic do to correct a problem?
In the rare event that a warranty claim is required Oceanic Saunas will provide a replacement for any confirmed broken piece of timber. This will not necessarily require the entire part to be replaced, e.g. an individual bench slat rather than the entire bench. Oceanic may offer a replacement but the customer may be required to return the product to Oceanic at the customer’s expense. The customer should follow the claims procedure as described below.
How long does the coverage last?
The timber warranty covers all the timber parts mentioned above for five years commencing from the point of sale/purchase by the customer. No certificate is required and there is no need to activate the warranty, all records of the purchase are kept by Oceanic Saunas SL.
What does this warranty not cover?
- Use of domestic equipment in a commercial environment
- Loss or theft
- Damage resulting from negligence
- Damage resulting from unauthorised modification
- Damage caused by natural disaster
- Consequential and indirect damage caused
- On site installation, fitting or removal of items
What do you have to do?
- To make a warranty claim, the customer is required to provide all information required by Oceanic to assess the issue.
- Oceanic may request detailed photographs
- Oceanic will make a judgement based on this information as to what replacement parts may be needed or if items need to be returned and replaced
- Where a replacement is granted, the customer must first return the initial product to Oceanic or may be required to be sent to the product manufacturer, this will be confirmed by Oceanic during the claim’s procedure. The return shall be at the expense of the customer and should be sent via a recorded courier service. Oceanic holds no liability for items lost or damaged in transit.
