- Product Description
All of our Traditional Finnish Sauna Cabins are manufactured in our UK factory using Grade A Scandinavian kiln dried spruce from managed and replanted forests, timber selection is crucial to the correct performance of the sauna cabin. Spruce, which has both low heat absorption and low resin content is ideal.
Our products are tested and meet European Standard. With over 40 years experience in Traditional Sauna Cabin manufacturing, we pride ourselves on quality at exceptional prices.

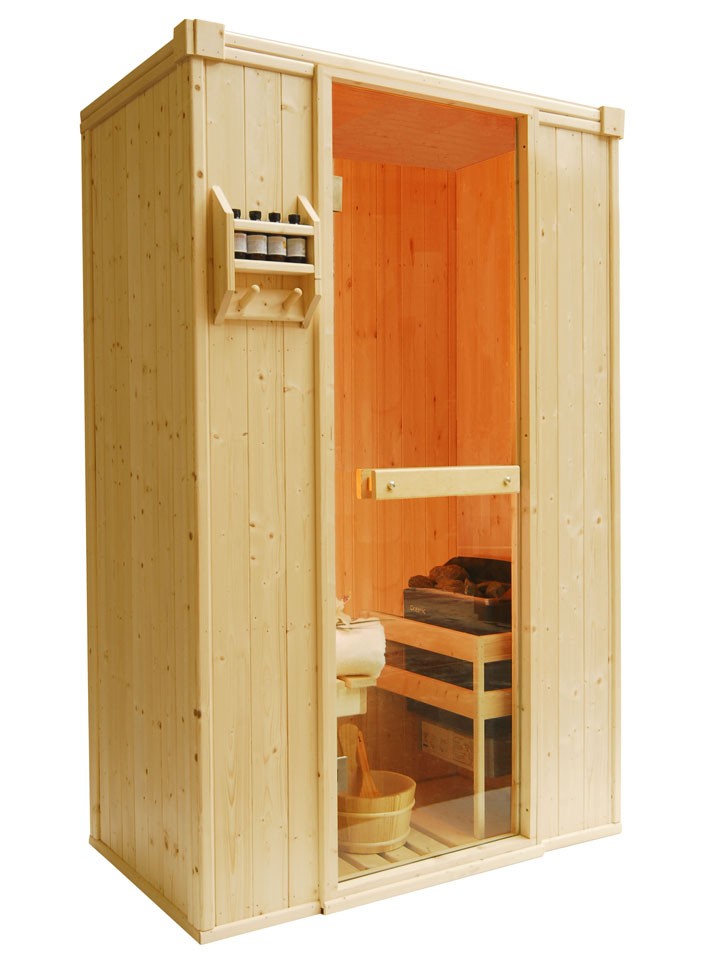

OS1020 Finnish sauna cabin 1250 x 730 x 1950mm is our most compact model and is suitable for one person, supplied complete with a 2.5kW Oceanic sauna heater + 15kgs of peridotie rocks. The controls are built into the heater for on/off, time, and temperature. For those looking for additional functionality and ease of use it is possible to upgrade to digital remote controls.
The sauna features 5 slat benches with supports, back rests, slatted floor mat (all supplied flat packed), a modern full height safety glass door with polished chrome & Ash wood handle and polished chrome hinges, heater guard, towel and fragrance rack, four 100ml bottles of Saunaroma (Lavender, Eucalyptus, Rosemary, Orange) headrests, traditional water bucket with liner and sculpted ladle, sand timer, thermometer, and all fitting and fixings.
All panels are fully insulated with rockwool fibre, and are clad on both the exterior and interior faces allowing the cabin to be assembled free standing in almost any location without the need for brickWork, plastering or fixing to walls .The door mounted in its frame is the same size as a panel and entirely symmetrical allowing its position on the to be readily interchanged, though the door must for safety reasons be opened outward it can be hinged either left or right.
Dimensions (LxWxH) 1250 x 730 x 1950mm Electrical Supply 230V 1N~ Flat Packed Yes Materials the Sauna can be erected on Vinyl, Ceramic, Concrete Width of 5 Slat Benches 430mm Number of Low Benches 1 Number of High Benches 0 Heater Size 2.5kW Hard Wiring Required Yes Air Gap Requirements 25mm
- Celebration or Deluxe
Our Celebration saunas are our most popular and cost effective specification, they feature kiln dried Finnish Spruce timber for the benches, backrests, floor mat and heater guard. Our celebration backrest is now 3 slat and is ergonomically curved for user comfort - Please see image of the deluxe backrest below for reference.
For those seeking extra style and comfort, our Deluxe specification offers an upgrade to Abachi timber for the benches, backrests, floor mat and heater guard, the 3 slat backrest is ergonomically curved for user comfort. Abachi timber is knot free hardwood with an attractive appearance, it is selected for use in saunas due to its low thermal conductivity.
- Which heater to choose
Built in Digital Control Heater
Oceanic wall hung heater for domestic use with digital controls for time and temperature are incorporated into the base of the unit. 1.5 hour timer with automatic high temperature safety cut off. Suitable to single or three phase connection (4.5 - 6kW units)
- Only requires one cable to the heater from isolated mains supply
- No additional keypad required
- All in one cost effective option
OCSB Digital External Control Heater
For the most reliable, accurate and quickest heating of your sauna our simple to use OCSB control system is the best solution. Control the time, temperature, lighting and fan from the easy to use keypad that can be mounted up to 10m from the main control box, typically on the front of the cabin. Heavy duty relays sequentially switch the elements to ensure accurate and efficient control of the internal sauna temperature which is measured by a wall mounted temperature sensor.
- Remote keypad makes it easier to activate and control the heater
- Heavy duty relays and sequential switching for prolonged life of heater
- Higher temperatures can be reached with the internal temperature sensor
- Faster heat up time
- Lighting and fan can be switched via the keypad
- 12 hour timer
- Product Features
Timber selection is crucial to the correct performance of the sauna cabin. Spruce, which has both low heat absorption and low resin content is ideal. Although it grows in many regions, in the northern areas of Scandinavia the countless generations of experience of nurturing trees, pruning and thinning combine with the cooler weather conditions which slows growth ensuring straight strong timbers.
Specifying top grades means we take only material which is free from dead knots, splits and shakes, the timber is kiln dried in the country of origin, it is then checked again for quality before being assembled into a sauna cabin.
Safety Glass Door
We offer a choice of standard sauna doors in either clear or bronze glass.
A full height clear glass door constructed from tempered safety glass, featuring modern polished chrome hinges and matching Ash and polished chrome handle
A full height bronze glass door constructed from tempered safety glass, featuring a traditional wooden handle and stainless steel hinges.
Fully Insulated Panels
All wall and ceiling panels are fully insulated with DIN4102 rated Earthwool fibre insulation, ensuring the heat is contained within the cabin, speeding up heat up times and reducing energy waste.
- Optional Extras
Seamless colour transition between all colours in the spectrum. Remote control included with variable brightness and ability to change between colours. Suitable for infra red and traditional saunas.
[Important: must not be installed above 1500mm within a rock heater sauna cabin]
Enhance your sauna experience with our new Sauna Herb Bowl. Slice a lemon or lime, crush a handful of your favorite herbs and toss them into this bowl with a little water, hang it directly over the sauna stove using the chain and hook provided - the extra humidity will combine with the delightful natural fragrances adding another dimension to your sauna experience.
Can also be used with Himalayan salts.
Stainless steel bowl with chain and fittings.
120°C High temperature waterproof IP65 sauna speakers with Bluetooth
Two water proof IP65 rated 120°C 10 cm (4") speakers with plastic basket and grill. Balanced, high cone frequency response efficiency and good high to mid-range reproduction. Suitable for use in swimming pools, saunas, steam rooms. Bluetooth mini stereo audio for connecting to Bluetooth enabled devices.
We offer a range of fully glazed and half glazed panels. Glass panels can allow you to take advantage of a view from your room, or just let some natural light into the sauna creating a feeling of space. For advice on glazing options please call our sales team.
- Technical Information
- Sauna heaters do not operate from a 3 pin plug, they require hard wiring via an isolator switch using high temperature silicon rubber cable to BSEN 6141 (not included). Purchase 3 Meters as an optional extra or See our sauna accessories page for Silicone Rubber Cable in order to order different lengths.
- There is a wiring panel which has an internal gully which allows the wire to be hidden inside the panel if required.
- For heaters with Built in Controls the lights must also be wired separately with silicon bound heat proof cable. Silicon bound cable is available to purchase from our Sauna Accessories page.
- For heaters with Remote OCSB controls, the control box will supply the heater, keypad, lights and temperature sensor. The control box is usually positioned on the roof of the cabin
The cost to run an average sauna cabin with a 4.5kW heater is 54p per hour. (using an average unit cost of 12p per kWh, please check with your service provider for exact unit costs.)
- Installation & Size Adjustments
- A level, washable floor, preferably vinyl, stone, ceramic or concrete
- 25mm air gap all around the cabin to allow air to circulate
- A suitable power supply - isolated 230V single phase supply to the correct standard installed by a qualified electrician.
- In restricted areas is it possible to assemble the sauna cabin from the inside
- The door of the cabin can be hinged left or right but must open outward
- A qualified electrician must be used for the installation of the sauna heater.
Modifications can be made to reduce the size of the sauna width and depth, the height of the sauna must not be altered. Full details on how to make modifications can be found in our "Sauna Assembly Manual" which is available for download from the "downloads" tab above.Size adjustments can also be made in our factory, for full details on bespoke sizing please call our sales team.
Please note: the heater supplied with each model is the correct for the power for the size of cabin, reducing the size of the cabin may mean that the heater will be too powerful, for advice on which size heater you require for your cabin please call our sales team.
OS1020 sauna cabin cannot be reduced in size.
- Technical Drawing
- Delivery & Warranty
Delivery of your order
We manufacture the cabins (saunas and Turkish steam baths) at the request of the client, so we do not have stock available immediately.
For delivery to the islands, it is required to add a protective layer of wood to the pallet to prevent damage during transport, with an additional mandatory cost of €50 or €75 depending on the item.
Deliveries are made at your door, that is, at the main door or portal of your home or property, at street level – the pallets or packages will be delivered in front of the main door of your house or building. They will not be uploaded or delivered within your home.
Delivery will be made with a flatbed truck as long as there is sufficient access at destination, delivery at street level and full readiness to receive the merchandise. Sufficient access: the truck must be able to access the delivery point without difficulty, it must have enough space to maneuver or be able to leave without any problem. The client has to notify Oceanic Saunas of any access problem that might exist. In the event that the delivery conditions are not adequate, Oceanic Saunas reserves the right to cancel the order and return the amount of the merchandise, subtracting the cost of transport to and from the collection.
We recommend that two people are available to unload the pallet: unloading usually takes about 20 minutes. It is important to wear gloves and protective glasses for handling, especially when handling glass parts.
Sauna or steam room orders cannot be changed, canceled or returned once the pallet has been collected from our warehouse.
To obtain a quote for our delivery service, contact us.
All Oceanic products are guaranteed for 3 years in the event of a lack of conformity.
The warranty does not apply to "consumable" parts, such as elements, for example.
This range of product will not be exchanged or refunded once it has left our warehouse.
Please, read our Terms and conditions for more details about delivery and guarantee.
